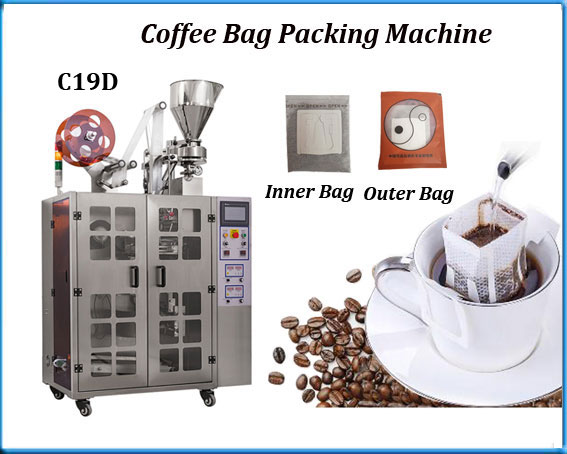

Mexico drip coffee bag packaging machine
Product name: Mexico drip coffee bag packaging machine
Category: Automatic Packing Machine
Italy drip coffee bag packaging machine from manufacturers & suppliers can automatically pack the hanging ear drip coffee bag which is a kind of portable coffee bag and sealed with drip coffee filter bag and ground coffee, packing roasted drip coffee bag, ground coffee bag with thread and tag, with FAQ below for your information.
Type:
Drip Coffee Packing Machine Series
Product model:
C19H
Product name:
Mexico drip coffee bag packaging machine
Bag type:
3 side sealing
Outer Bag size:
L:85~120mm,W:75~100mm (Film width 200mm, Bag size: 120*100mm)
Inner Bag size:
L:50~75mm, W:50~90mm (Filter paper width 180mm, Bag size: 90*75mm)
Packing speed:
40~55 bags/min
Filling range:
5~15g; accuracyy:≦±0.1g/bag
Measuring:
Volumetric cup
Inner Packing material
Drip coffee bag Filter paper
Outer packing material
Kraft paper/aluminum coating; PE/aluminum coating; PE film
Sealing method:
Ultrasonic sealing and cutting for inner bag; Outer Bag by heat Sealing.
Power:
Single phase, 220V, 50HZ, 1.5KW
Weight:
600KG
Dimension (L*W*H):
1200*900*1900mm
Italy drip coffee bag packaging machine:
FAQ - Frequently asked questions:
FAQ 1: What is the function and application for this Saudi arabia drip coffee bag packaging machine?
Answer: This drip coffee bag packaging machine is used to produce Inner coffee bag with outer packaging pouch automatic at one go instead of hand sealing by heat sealer, for ground coffee powder like liqueur coffee, chai latte coffee, espresso con panna coffee, vienna coffee, kopi susu coffee, eiskaffee coffee, egg coffee, caffee gommosa coffee, vietnam coffee, brazil green coffee,etc, for Korea coffee company, coffee roaster, coffee Importer and Exporter, and coffee business distributor, coffee shop, which will highly improve the production efficiency.
FAQ 2: What is the packing volume and weight for each drip coffee bag?
Answer: For one cup of coffee, 1 - 15G volume is enough, and most clients packed drip coffee bag in 10G, 12G, etc.
FAQ 3: What is the drip coffee filter paper bag for inner coffee bag packaging materials?
Answer: The inner coffee bag packaging materials is drip coffee filter with hanging ear, made with nonwoven fabric in film or roll, and is alredy a kind of standard packing materials that works with our packing machine, with bag size at 90*74mm and 90*70mm.
FAQ 4: What is the flexiable packaging materials for drip coffee bag?
Answer: The flexiable packaging materials for drip coffee bag is Kraft paper bag or PE bag with aluminum foil as barrier layer, Normally is made into film or roll or premade doypack pouch bag. For more details, please kindly contact us.
FAQ 5: What is the difference between heat sealing and ultrasonic sealing Saudi arabia drip coffee bag packaging machine?
Answer: The main difference between heat sealing and ultrasonic sealed drip coffee bag is in Sealing Edge of Inner bag. For more details, please kindly contact us.
FAQ 6: What is the packing for whole machine when shipping?
Answer: In Internation business, the automatic coffee packing machine will be shipped by Sea, which means the stable plywood case and waterproof packing is a must.
FAQ 7: Do you need fill the Nitrogen gas to drip coffee bag?
Answer: We can add nitrogen gas injection system in drip coffee bag packing machine. And with a Nitrogen gas generator, can supply the Nitrogen gas so that can be injected into drip coffee bag to extend coffee shelf life and keep coffee fresh. For more solution to extend the coffee shelf life, kindly contact for more details.
FAQ 8: Can I see the working video of Saudi arabia drip coffee bag packaging machine?
Answer: Here shows the working video of drip coffee bag packaging machine. Except this video, welcome to click here to see more working video.
1. The machine can complete bag-making, measuring, filling, sealing, cutting, counting, printing QR code, nitrogen filling function and other functions.
2. The machine structure is open type, convenient for debugging, monitoring, clean, and man-machine interface operation.
3. Adopt Delta PLC, multi-language touch screen controlling, main power by servo system, easy operation, high efficiency.
4. In Strict detection, the equipment will stop under the conditions of no material, empty inner bag, empty outer bag, no film, insufficient air pressure, temperature deviation and so on, to greatly reduce the output of defective products.
5. The inner bag length is driven by a servo motor, positioning is accurate, and the bag length is stable.
6. The outer bag adopts the form of servo motor pulling film, which is more smooth and fast than the traditional pulling film wheel type. Shaper using five axes machining center precision processing, can be applied to most of the different material film, and the production of bag smooth natural, no pull marks, wrinkles and other defects.
7. Independent inner bag production mode, can realize one machine multi-purpose, users can according to the needs of the production of lug inner bag, filter paper inner bag, inner and outer bag three different types of products.
8. The feeding system of this machine has the advantages of simple adjustment, high measuring accuracy, and easy to clean, which effectively solves the cleaning problem caused by frequent replacement of materials in the production process
Key Parts of Italy drip coffee bag packaging machine:
A drip coffee bag packing machine is a complex piece of equipment made up of several key Parts. Each part plays a crucial role in ensuring the machine operates smoothly and efficiently.
1. Hopper: This is where the coffee is stored before it is dispensed into the filter paper. The hopper is designed to release a precise amount of coffee each time, ensuring consistency in every drip bag.
2. Measuring system: The measuring system releases the exact amount of coffee from the hopper into the filter paper. It’s calibrated to ensure the right quantity of coffee is used for each drip bag.
3. Inner bag sealing system: Once the coffee is filled in the drip coffee filter paper, the sealer of inner bag system folds and seals the paper to create the drip bag. It uses the ultrasonic sealing wave to ensure the bag is securely sealed and the coffee stays fresh.
4. Outer Sachet sealing system: This component encloses the drip bag in an outer sachet for additional protection. It seals the sachet to keep the coffee fresh until it’s ready to be used.
Why used Italy drip coffee bag packaging machine for coffee company:
The use of drip coffee bag packing machines offers a great benefits to coffee businesses. Here are a few key advantages:
1. Efficiency: These machines automate the packaging process, significantly increasing the speed of production. They can package hundreds, if not thousands, of drip bags in an hour, far surpassing what could be achieved manually.
2. Consistency: Drip coffee bag packing machines ensure each bag contains the exact amount of coffee, guaranteeing consistency in every package. This consistency is crucial for maintaining the quality of the product and the reputation of the brand.
3. Cost-effectiveness: By automating the process, these machines reduce the need for manual labor, leading to significant cost savings in the long run.
4. Quality Control: The sealing process ensures the coffee is well-protected from external factors that could compromise its quality. This results in a fresher, more flavorful brew for the consumer.
